HD12
Medium, rear extending HD production vehicle built around an SDI core.
Medium, rear extending HD production vehicle built around an SDI core.
The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.
A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!
Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

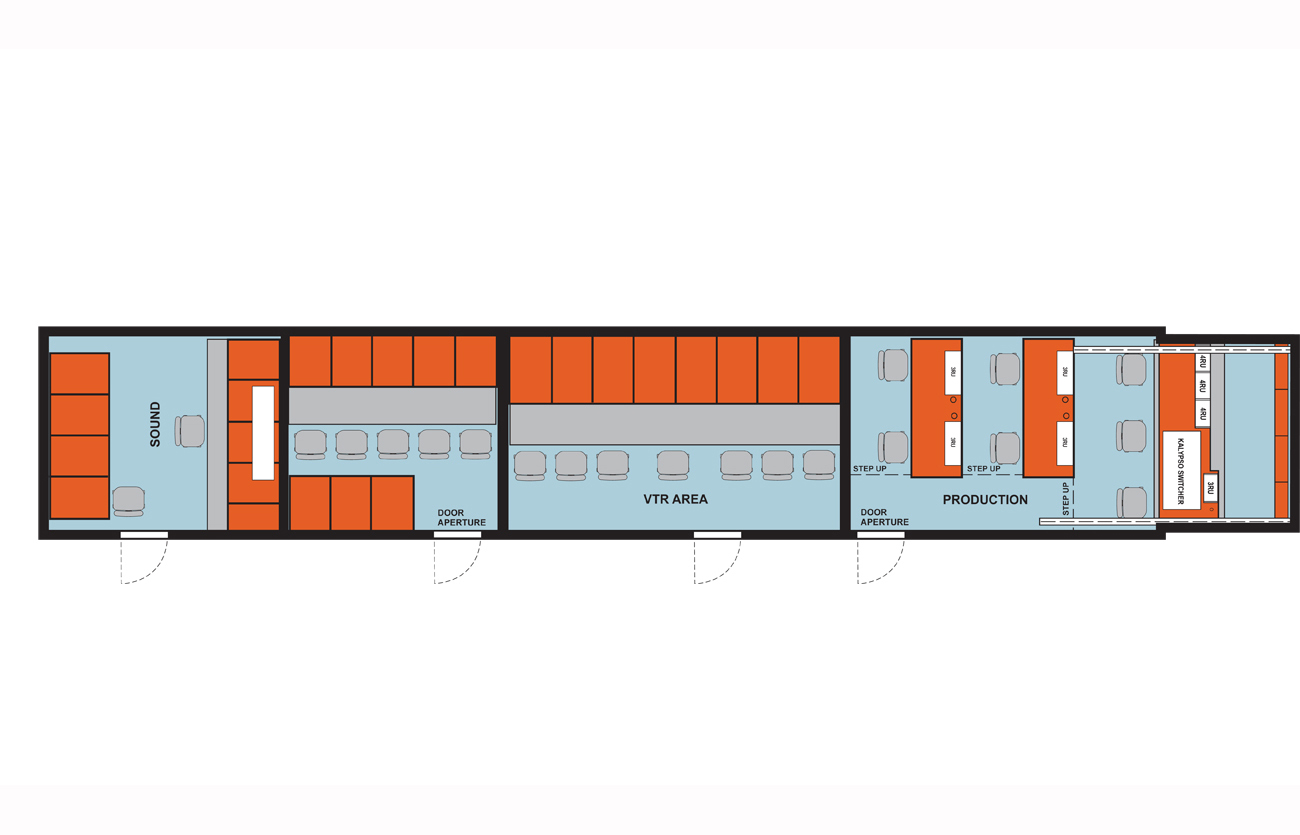

Operational Dimensions: 18.5m long x 4.0m wide x4.3m high
Operational Power: 1 x 125A 3-phase, or 3 x 125A single phase, 400VAC
Production
GVG K-Frame Karrera Vision Mixer, 72 Inputs / 72 Outputs, 3 M/E
iDPM
Image Store
Communications
Telex ODIN Intercom System – Analogue, OMI, RVON+
Cameras
Wired for 20 CCUs
Video and Monitoring
Vega 700 3G SDI Video Router
165 inputs x 264 outputs
Audio
Calrec Omega with Bluefin DSP Processing
340 Channels with full signal processing
48 multi-track busses
20 Aux busses
56 Fader, A/B La
2 MADI inputs & 2 MADI outputs
Record & Playback
Up to 3 x EVS 12Channel servers
